产品已广泛用于大型体育场馆、舞台、娱乐场所、会议厅和大型酒店等扩声系统

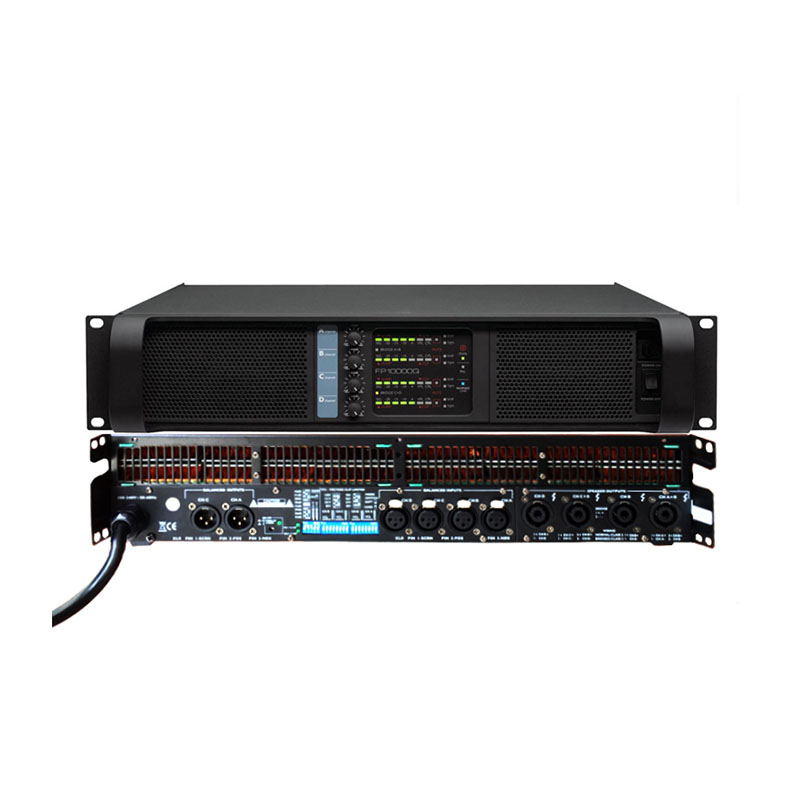

FP10000Q
FP10000Q
FP10000Q
FP10000Q
FP10000Q
所属分类:开关电源功放
  • 产品介绍
  • 产品参数
  • 产品图纸
  • ModelFP10000Q
    8Q Stereo Power (RMS):1300Wx4
    422 Stereo Power(RMS):2350Wx4
    202 Stereo Power(RMS):2500Wx4
    822 Bridged Power(RMS):4400Wx2
    422 Bridged Power(RMS):5000Wx2
    Frequency Response(+o/-0.3dB, 1 W/822)20Hz-34KHZ
    THD 20 Hz-20 kHz for 1 W<0.1%
    Net weight(kg)13Kg
    Signal-to-Noise Ratio>112dB
    Channel separation(Crosstalk)at 1kHz>70dB
    Input Connectors(per channel)3-pin XLR, Electronically Balanced
    Output Connectors(per channel)Speakon Connectors NEUTRIK)
    Input Impedance20KOhm
    Common Mode Rejection(CMR)>54dB20Hz-20KHz
    Output Impedance@100HZ32Ohm
    Voltage Peak Limiter Mobe(per ch)Hard/Soft
    VPL, selectable per ch (V )150,121,101,83,70,56,47,38V
    VPL, selectable when bridged(V)300,242,202,168,140,112,94,75V
    Power Requirement200-240V,50-60Hz
    Packing dimension580x500x175mm
    ClassTD
